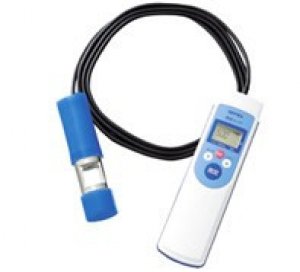

You can easily measure the water turbidity anywhere with this portable sensor because it cannot be affected by external disturbance light.
Unnecessary to draw the water.
You just put the probe into the water to measure turbidity. You can avoid the hassle of drawing the water.
High durability
Controller Unit: Waterproof IP67. Anti-bacterial metrical is used. Sensor Unit: Durable SUS316L is used. Optical window is made of sapphire glass. It is equipped with a rubber to absorb the impact from wear and shock.
Model No.
TD-M500
Measuring Technique
Attenuated Light Method
Measuring Range
0.0-500FTU
Display Resolution
0.1FTU (0.0-99.9), 1FTU (100-500)
Calibration
Distilled Water or Air Calibration
Correction
Single or Double Point Correction
Power Requirements
9V Layer-built Alkaline Dry Battery (6LR61)
Battery Life
Approx. 8000 measurements
Water Temperature
0 to 40℃ (32 to 104°F)
Operating Temperature
-5 to 50℃ (23 to 122°F)
Operating Humidity
95% Rh or less
Materials
Controller: Body / ABS, Optical Windows / PMMA Probe: Body / SUS316L, Protection Cover / Silicon Rubber
Cable Length
5m
Dimensions
Controller: H x W x D = 160 x 44 x 42 mm Probe: 30 x116 mm
30 x116 mm
